광학식 로터리 엔코더
Optical Rotary Encoder | E Series
Incremental
고정밀/고분해능
CE CERTIFIED
제품 타입 · Product Types
Type 01 · Hollow Shaft
중공축 타입
외경 Ø 40 mm / Ø 50 mm
축 내경 Ø 6 mm / Ø 8 mm
좁은 공간 설치 가능 · 축의 관성 모멘트 최소화
Installable in tight spaces · minimizing the shaft's moment of inertia
축 내경 Ø 6 mm / Ø 8 mm
좁은 공간 설치 가능 · 축의 관성 모멘트 최소화
Installable in tight spaces · minimizing the shaft's moment of inertia

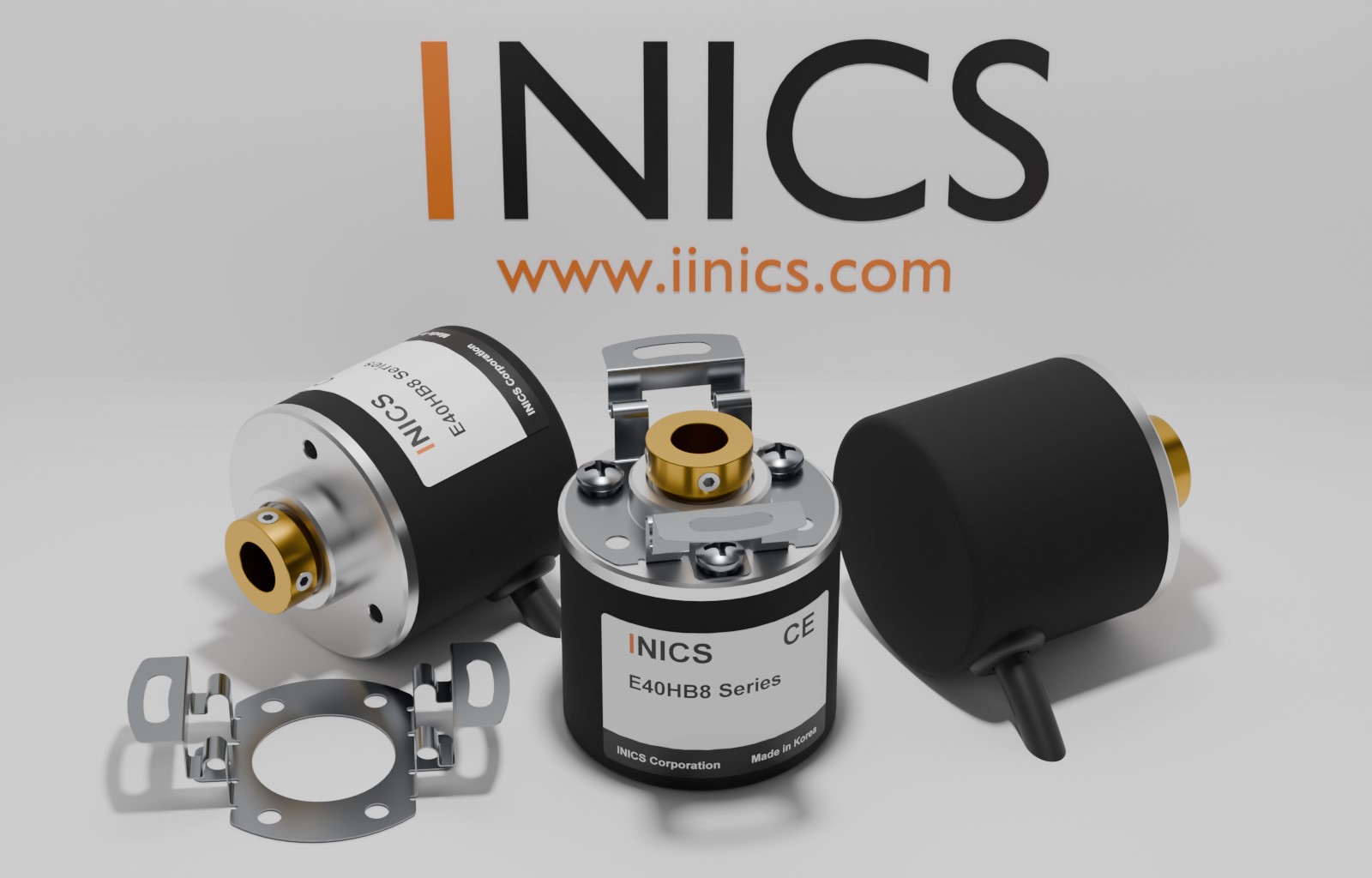

Type 02 · Built-in
빌트인 타입
외경 Ø 40 mm / Ø 50 mm
축 내경 Ø 6 mm / Ø 8 mm
내장형 구조 · 콤팩트 설치 최적화
Built-in structure · optimized for compact installation
축 내경 Ø 6 mm / Ø 8 mm
내장형 구조 · 콤팩트 설치 최적화
Built-in structure · optimized for compact installation

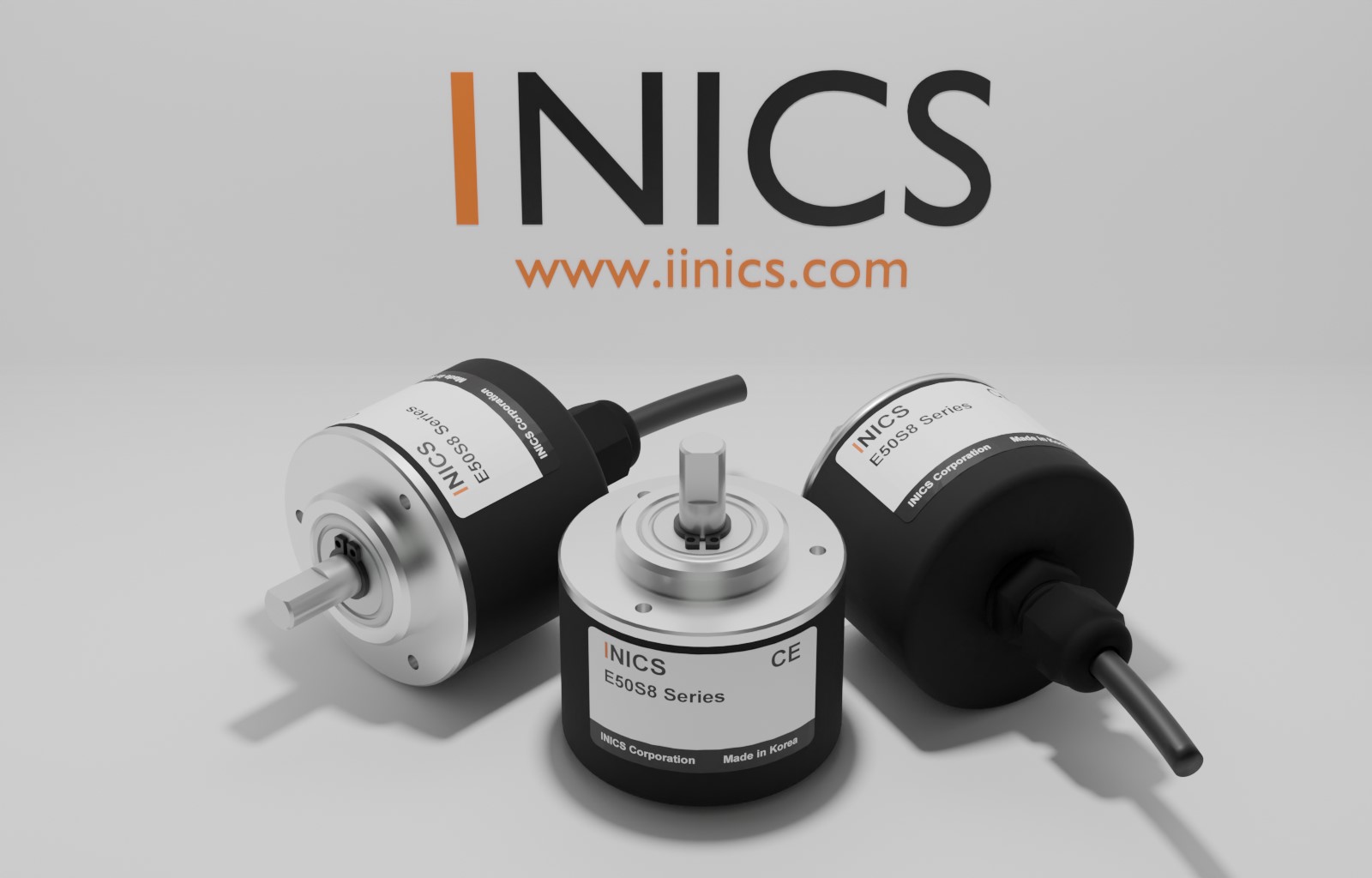

Type 03 · Shaft
샤프트 타입
외경 Ø 40 mm / Ø 50 mm
축 내경 Ø 6 mm / Ø 8 mm
일반 산업용 표준 샤프트 타입
Standard shaft type for general industrial applications
축 내경 Ø 6 mm / Ø 8 mm
일반 산업용 표준 샤프트 타입
Standard shaft type for general industrial applications
공통 사양 · Common Specifications
01
Power Supply · 전원
폭넓은 전원 전압
5V ~ 24V DC
다양한 산업 환경 전압에 대응 가능
Wide range of power supply voltage
Wide range of power supply voltage
02
Noise Immunity · 노이즈
외부 노이즈 강한 내성
High Immunity
산업 현장의 고노이즈 환경에서도 안정적 동작
Strong resistance to external noise
Strong resistance to external noise
주요 특징 · Key Features
-
좁은 공간 설치 및 축의 관성 모멘트 최소화 Minimization of installation in narrow spaces and shaft inertia moment
-
폭넓은 전원전압 (5VDC ~ 24VDC) Wide range of power supply voltage (5VDC ~ 24VDC)
-
외부 노이즈에 강한 내성 Strong resistance to external noise
-
광학식 인크리멘탈 방식 — 정밀 위치 · 속도 검출 Optical incremental type — precise position and speed detection
응용 분야 · Applications
산업용 모터
Industrial Motors
공작기계
Machine Tools
로봇
Robots
