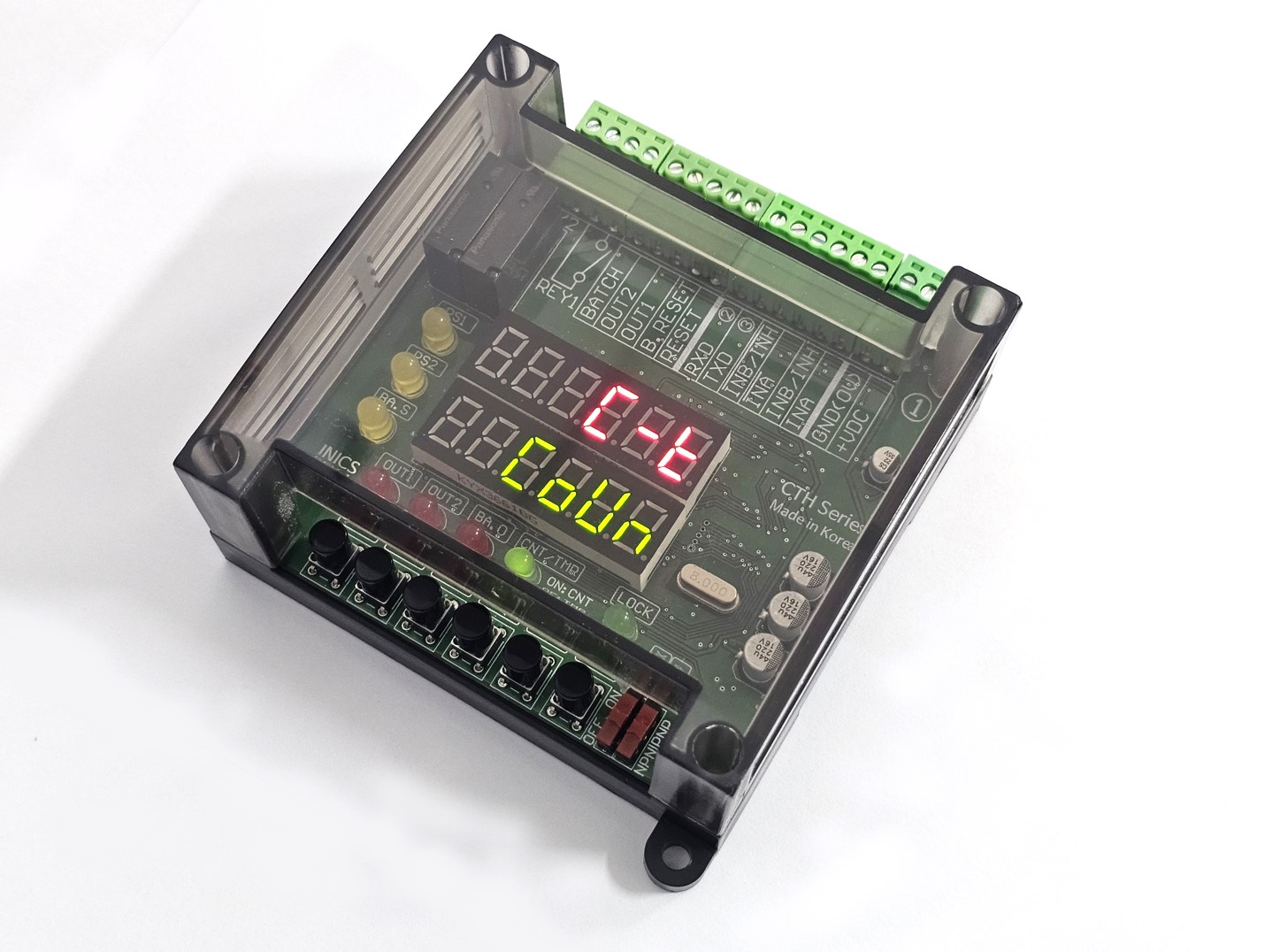

프로그래머블 고속 카운터 / 타이머
Programmable High-Speed Counter / Timer | CTH Series
- 엔코더·센서 신호 고속 정확 계수Accurately counts encoder and sensor signals at high speed
- kHz급 이상 고속 펄스 입력 대응Supports high-speed pulse input (kHz-level and above)
- 미세 위치·속도 제어에 최적화Optimized for precise position and speed control
- 가산/감산/가감산 카운터Supports Up / Down / Up-Down counting
- 프리셋 값 설정 및 배치 카운트Preset value setting and batch counting
- ms 단위부터 장시간까지 타이머Wide time setting from ms to long durations
- 다양한 입/출력 모드 설정Various input/output modes configurable
- 출력 조건·타이밍·동작 자유 설정Output conditions, timing freely configurable
- 사용자 맞춤형 제어 구현Customizable control for user requirements
- NPN / PNP 입력 지원Supports NPN / PNP inputs
- 전압 입력 / 무전압 입력Voltage input / dry contact input
- 엔코더·센서·스위치 연결 가능Encoders, sensors, switches connectable
- 6-digit LED 표시 (고해상도)6-digit LED display (high resolution)
- 실시간 카운트 및 시간 확인Real-time count and time monitoring
- 설정값 및 동작 상태 표시Displays set values and operating status
- Relay 출력 / NPN 오픈컬렉터Relay output / NPN open collector
- One-Shot 출력 시간 설정One-shot output time adjustable
- 외부 장비와 직접 연동Direct connection with external devices
14가지 입력 모드 / 8가지 출력 모드 지원.
프리스케일 설정 범위 0.001 ~ 999.999로 고정밀 펄스 분주 및 체배 가능.
BATCH 카운터로 배치 단위 공정 계수 지원.
Supports 14 input modes / 8 output modes.
Prescale setting range of 0.001 to 999.999 enables high-precision pulse division and multiplication.
BATCH counter supports batch-unit process counting.
10가지 출력 모드 지원으로 다양한 타이밍 제어 구현.
시간 설정 범위 0.01초 ~ 999,999분 — ms 단위부터 장시간까지.
'0' 시간 설정 기능으로 즉시 동작 제어 가능.
Supports 10 output modes for versatile timing control.
Time setting range of 0.01 sec to 999,999 min — from milliseconds to long durations.
The '0' time setting enables immediate operation control.
